Pipe Test Plug

Technical Table

Model# Nominal Size Usage Size Range Inflation Pressure Deflated Plug Product Approx. Weight Max. Allowable Back Pressure Bypass Size
Min. Dia. Max. Dia. Diameter Length Pipe Size Back Pressure
PTP3570/2,5 35mm-70mm
1,4”-2,8”
35mm
1,4”
70mm
2,8”
2,5bar
37 psi
33mm
1,3”
210mm
8,3”
0,3kg
0,7lbs
35mm(1,4”) 1,5bar(22psi) 1/8”
70mm(2,8”) 1,0bar(14,5psi)
PTP50100/1,5 50mm-100mm
2”-4”
50mm
2”
100mm
4”
1,5bar
22 psi
47mm
1,9”
280mm
11”
0,4kg
0,9lbs
50mm(2”) 1,0bar(14,5psi) 1/8”
100mm(4”) 0,5bar(7,3psi)
PTP50100/2,5 50mm-100mm
2”-4”
50mm
2”
100mm
4”
2,5bar
37 psi
47mm
1,9”
280mm
11”
1,0kg
2,2lbs
50mm(2”) 1,5bar(22,8psi) 1/8”
100mm(4”) 1,0bar(14,5psi)
PTP70150/1,5 70mm-150mm
2,8”-6”
70mm
2,8”
150mm
6”
1,5bar
22 psi
67mm
2,6”
375mm
15”
0,6kg
1,3lbs
70mm(2,8”) 1,0bar(14,5psi) 1/2”
100mm(4”) 0,8bar(11,6psi)
150mm(6”) 0,5bar(7,3psi)
PTP70150/2,5 70mm-150mm
2,8”-6”
70mm
2,8”
150mm
6”
2,5bar
37 psi
67mm
2,6”
375mm
15”
0,7kg
1,5lbs
70mm(2,8”) 1,7bar(24,7psi) 1/2”
100mm(4”) 1,4bar(20,3psi)
150mm(6”) 1,0bar(14,5psi)
PTP100200/1,5 100mm-200mm
4”-8”
100mm
4”
200mm
8”
1,5bar
22psi
91mm
3,6”
570mm
22,8”
2,6kg
5,7lbs
100mm(4”) 1,0bar(14,5psi) 1”
150mm(6”) 0,8bar(11,6psi)
200mm(8”) 0,5bar(7,3psi)
PTP100200/2,5 100mm-200mm
4”-8”
100mm
4”
200mm
8”
2,5bar
37 psi
91mm
3,6”
570mm
22,8”
2,7kg
6,0lbs
100mm(4”) 1,7bar(24,7psi) 1”
150mm(6”) 1,4bar(20,3psi)
200mm(8”) 1,0bar(14,5psi)
PTP100200/1,5-L 100mm-200mm
4”-8”
100mm
4”
200mm
8”
1,5bar
22psi
94mm
3,7”
400mm
16”
5,2kg
11,46lbs
NA 2”
PTP150300/1,5 150mm300mm
6”-12”
150mm
6”
300mm
12”
1,5bar
22 psi
140mm
5,5”
580mm
22,8”
4,5kg
9,9lbs
150mm(6”) 1,0bar(14,5psi) 2”
250mm(10”) 0,7bar(10,2psi)
300mm(12”) 0,5bar(7,3psi)
PTP150300/2,5 150mm300mm
6”-12”
150mm
6”
300mm
12”
2,5bar
37 psi
140mm
5,5”
580mm
22,8”
4,7kg
10,4lbs
150mm(6”) 1,7bar(24,7psi) 2”
250mm(10”) 1,3bar(18,9psi)
300mm(12”) 1,0bar(14,5psi)
PTP200400/1,5 200mm-400mm
8”-16”
200mm
8”
400mm
16”
1,5bar
22 psi
187mm
7,4”
680mm
26,8”
8,5kg
18,7lbs
200mm(8”) 1,0bar(14,5psi) 2”
300mm(12”) 0,7bar(10,2psi)
400mm(16”) 0,5bar(7,3psi)
PTP200400/2,5 200mm-400mm
8”-16”
200mm
8”
400mm
16”
2,5bar
37 psi
187mm
7,4”
680mm
26,8”
8,7kg
19,2lbs
200mm(8”) 1,7bar(24,7psi) 2”
300mm(12”) 1,3bar(18,9psi)
400mm(16”) 1,0bar(14,5psi)
PTP200500/1,5 200mm-500mm
8”-20”
200mm
8”
500mm
20”
1,5bar
22 psi
187mm
7,4”
820mm
32,3”
9,5kg
20,9lbs
200mm(8”) 1,0bar(14,5psi) 2”
400mm(16”) 0,6bar(8,7psi)
500mm(20”) 0,5bar(7,3psi)
PTP200500/1,5L 200mm-500mm
8”-20”
200mm
8”
500mm
20”
1,5bar
22 psi
192mm
7,56”
682mm
26,85”
12,5kg
27,56lbs
NA 4”
PTP200500/2,5 200mm-500mm
8”-20”
200mm
8”
500mm
20”
2,5bar
37 psi
187mm
7,4”
820mm
32,3”
9,8kg
21,6lbs
200mm(8”) 1,9bar(27,6psi) 2”
400mm(16”) 1,2bar(17,4psi)
500mm(20”) 1,0bar(14,5psi)
PTP300600/1,5 300mm-600mm
12”-24”
300mm
12”
600mm
24”
1,5bar
22 psi
286mm
11,3”
900mm
35,43”
15,2kg
33,5lbs
300mm(12”) 1,0bar(14,5psi) 2”
500mm(20”) 0,6bar(8,7psi)
600mm(24”) 0,5bar(7,3psi)
PTP300600/1,5L 300mm-600mm
12”-24”
300mm
12”
600mm
24”
1,5bar
22 psi
290mm
11,4”
682mm
26,85”
24kg
52,91lbs
NA 4”
PTP300600/1,5-DB 300mm-600mm
12”-24”
300mm
12”
600mm
24”
1,5bar
22 psi
286mm
11,3”
900mm
35,43”
15,2kg
33,5lbs
300mm(12”) 1,0bar(14,5psi) 2 x 2”
500mm(20”) 0,6bar(8,7psi)
600mm(24”) 0,5bar(7,3psi)
PTP300600/2,5 300mm-600mm
12”-24”
300mm
12”
600mm
24”
2,5bar
37 psi
286mm
11,3”
900mm
35,43”
15,5kg
34,2lbs
300mm(12”) 1,5bar(22,8psi) 2”
500mm(20”) 1,2bar(17,4psi)
600mm(24”) 1,0bar(14,5psi)
PTP375800/1,5 375mm-800mm
15”-32”
375mm
15”
800mm
32”
1,5bar
22 psi
361mm
14,2”
1020mm
40,2”
18,5kg
40,8lbs
375mm(15”) 1,2bar(17,4psi) 2”
600mm(24”) 0,8bar(11,6psi)
800mm(32”) 0,5bar(7,3psi)
PTP375800/2,5 375mm-800mm
15”-32”
375mm
15”
800mm
32”
2,5bar
37 psi
361mm
14,2”
1020mm
40,2”
19,8kg
43,7lbs
375mm(15”) 1,8bar(26,1psi) 2”
600mm(24”) 1,4bar(20,3psi)
800mm(32”) 1,0bar(14,5psi)
PTP500800/1,5-L 500mm-800mm
20”-32”
500mm
20”
800mm
32”
1,5bar
22 psi
442mm
17,40”
682mm
26,85”
40kg
88,18lbs
NA 6”
PTP5001200/1,5-L 500mm-1200mm
20”-48”
500mm
20”
1200mm
48”
1,5bar
22 psi
442mm
17,40”
950mm
37,40”
52kg
114,64lbs
NA 8”
PTP5001000/1,5 500mm-1000mm
20”-40”
500mm
20”
1000mm
40”
1,5bar
22 psi
486mm
19,1”
1200mm
48”
42kg
92,6lbs
500mm(20”) 1,0bar(14,5psi) 2”
800mm(32”) 0,7bar(10,2psi)
1000mm(40”) 0,5bar(7,3psi)
PTP5001000/1,5-DB 500mm-1000mm
20”-40”
500mm
20”
1000mm
40”
1,5bar
22 psi
486mm
19,1”
1200mm
48”
52kg
114,6lbs
500mm(20”) 1,0bar(14,5psi) 2 x 2”
800mm(32”) 0,7bar(10,2psi)
1000mm(40”) 0,5bar(7,3psi)
PTP5001000/2,5 500mm-1000mm
20”-40”
500mm
20”
1000mm
40”
2,5bar
37 psi
486mm
19,1”
1200mm
48”
42kg
92,59lbs
500mm(20”) 1,5bar(22,8psi) 2”
800mm(32”) 1,2bar(17,4psi)
1000mm(40”) 1,0bar(14,5psi)
PTP6001200/1,5 600mm-1200mm
24”-48”
600mm
24”
1200mm
48”
1,5bar
22 psi
586mm
23,1”
1400mm
56”
50kg
110,2lbs
600mm(24”) 1,0bar(14,5psi) 2”
900mm(36”) 0,7bar(10,2psi)
1200mm(48”) 0,5bar(7,3psi)
PTP6001200/1,5-DB 600mm-1200mm
24”-48”
600mm
24”
1200mm
48”
1,5bar
22 psi
586mm
23,1”
1400mm
56”
61kg
134,5lbs
600mm(24”) 1,0bar(14,5psi) 2×2”
900mm(36”) 0,7bar(10,2psi)
1200mm(48”) 0,5bar(7,3psi)
PTP6001200/2,5 600mm-1200mm
24”-48”
600mm
24”
1200mm
48”
2,5bar
37 psi
586mm
23,1”
1400mm
56”
52kg
114,6lbs
600mm(24”) 2,0bar(29,0psi) 2”
900mm(36”) 1,3bar(18,9psi)
1200mm(48”) 0,8bar(11,6psi)
PTP6001600/1,0 600mm-1600mm
24”-64”
600mm
24”
1600mm
64”
1,0bar
14,5 psi
580mm
22,83”
2100mm
84”
66kg
145,5lbs
600mm(24”) 1,7bar(24,7psi) 2”
1400mm(56”) 0,5bar(7,3psi)
1600mm(64”) 0,3bar(4,4psi)
PTP6001600/1,0-DB 600mm-1600mm
24”-64”
600mm
24”
1600mm
64”
1,0bar
14,5 psi
580mm
22,83”
2100mm
84”
72kg
158,7lbs
600mm(24”) 1,7bar(24,7psi) 2×2”
1400mm(56”) 0,5bar(7,3psi)
1600mm(64”) 0,3bar(4,4psi)
PTP6001600/1,5 600mm-1600mm
24”-64”
600mm
24”
1600mm
64”
1,5bar
22 psi
580mm
22,83”
2100mm
84”
69kg
152,1lbs
600mm(24”) 2,3bar(33,4psi) 2”
1400mm(56”) 0,6bar(8,7psi)
1600mm(64”) 0,4bar(5,8psi)
PTP8001600/1,0 800mm-1600mm
32”-64”
800mm
32”
1600mm
64”
1,0bar
14,5 psi
782mm
30,8”
1750mm
70”
63kg
138,9lbs
800mm(32”) 2,0bar(29,0psi) 2”
1400mm(56”) 0,7bar(10,2psi)
1600mm(64”) 0,5bar(7,3psi)
PTP8001800/1,0 800mm-1800mm
32”-72”
800mm
32”
1800mm
72”
1,0bar
14,5 psi
782mm
30,8”
2150mm
86”
73kg
160,9lbs
800mm(32”) 2,3bar(33,4psi) 2”
1600mm(64”) 0,7bar(10,2psi)
1800mm(72”) 0,4bar(5,8psi)
PTP8002000/1,0 800mm-2000mm
32”-80”
800mm
32”
2000mm
80”
1,0bar
14,5 psi
782mm
30,8”
2500mm
100”
88kg
194,0,92lbs
800mm(32”) 2,6bar(37,7psi) 2”
1800mm(72”) 0,5bar(7,3psi)
2000mm(80”) 0,4bar(5,8psi)
PTP8002200/1,0 800mm-2200mm
32”-88”
800mm
32”
2200mm
88”
1,0bar
14,5 psi
782mm
30,8”
3250mm
130”
109kg
240,3lbs
800mm(32”) 2,9bar(42,1psi) 2”
1800mm(72”) 0,6bar(8,7psi)
2000mm(80”) 0,4bar(5,8psi)

*Always use Support/Bracing for the plug against sliding!!!

** Custom Production is Available

Technical Datasheets

Get the datasheet from the following list:

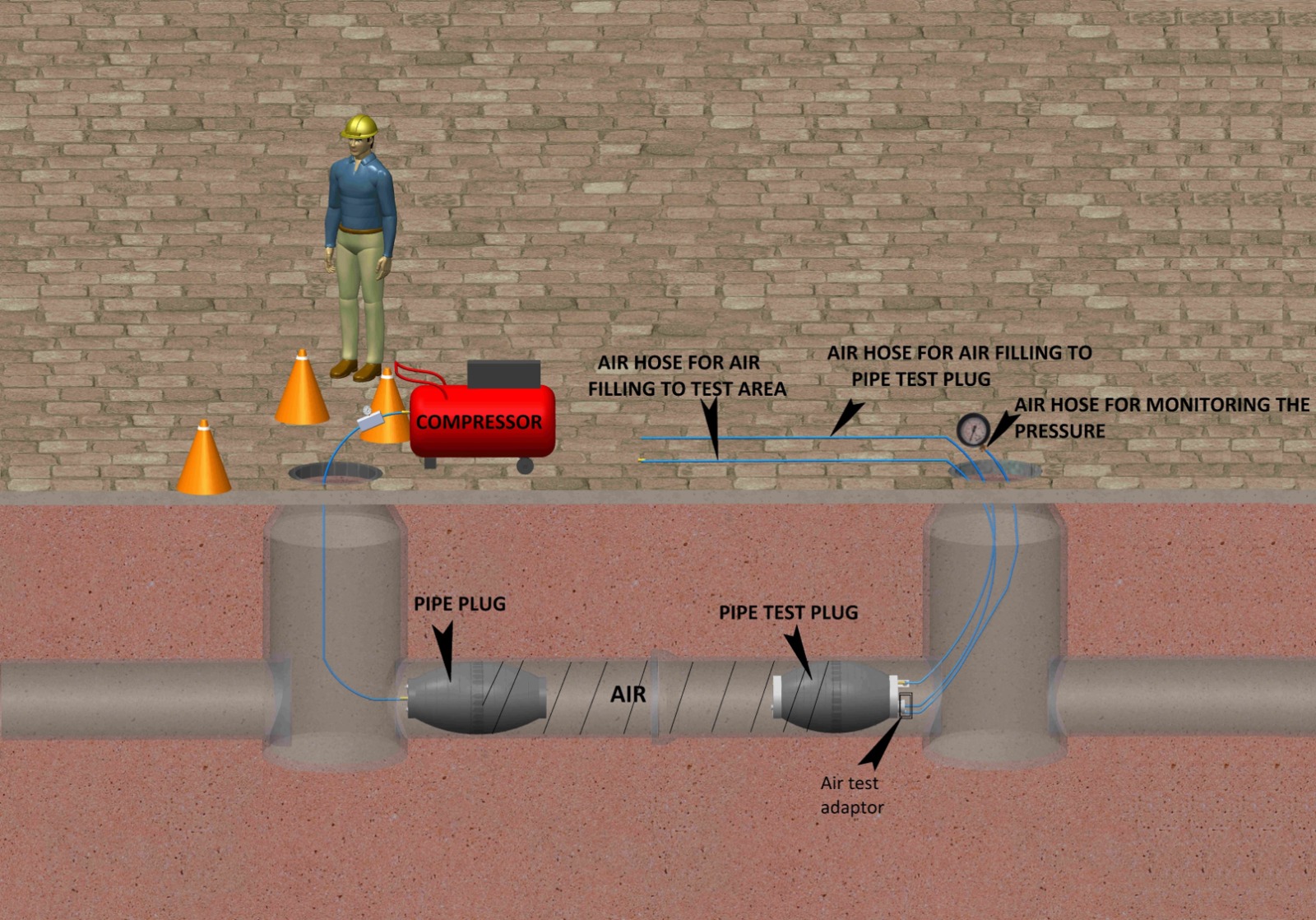

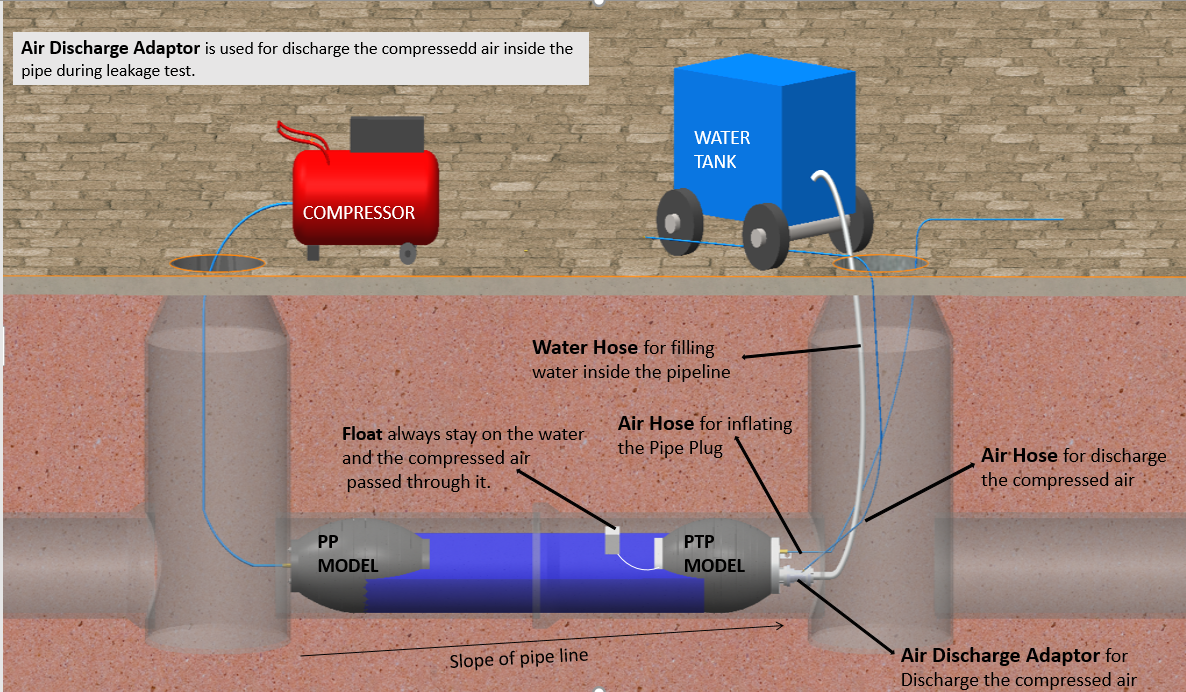

Application Sketches

Application Sketch 1
Application Sketch 2
Application Sketch 3
Application Sketch 4

Find the answers to all your questions about Pipe Test Plug

  • What is the closest PlugCo distributor to you?+

    PlugCo offers worldwide delivery and has exported its products to more than 50 countries in the 6 continents so far. You can check all PlugCo Distributors in our “Contact Page” or contact us directly to share with you our distributor details if any.

  • What are the delivery terms of PlugCo?+

    PlugCo offers worldwide delivery and has exported its products to more than 50 countries in the 6 continents so far. Thanks to its express services and airfreight shipping, PlugCo always guarantees the best delivery time for its clients. The main delivery terms we are offering are DAP to the client’s address, CIP to the client’s closest airport and FCA-Turkey. We also offer DDP delivery term for many countries such as USA, KSA, UAE, Morocco… Our Delivery terms are always flexible and can be changed as per the client’s requirements.

  • What is the Country of Origin of PlugCo Pipe Test Plugs? +

    PlugCo is the largest Turkish Manufacturer of high-quality infrastructure test equipment including the Pipe Test Plug Model. All PlugCo Products are 100% Turkish made.

  • What is the most importing thing about Pipe Test Plug?+

    PlugCo is considering the safety as its first priority. That’s why we are always insisting on following the safety instructions in our Safety Manual to avoid the Plugs sliding or bursting, which can result in bodily injury, death or property damage!

  • What is the material of Pipe Test Plug?+

    The Pipe Test Plug is made of SBR+NR mixed rubber, nylon cord, Kevlar cord and strong fabrics. The Bypass Connection is a flexible reinforced plastic hose.

  • What is Pipe Test Plug?+

    Pipe Test Plug is a gravity lines testing device. It’s named also bypass pipe plug, pipe test balloon, through flow pipe plug, pneumatic test plug or rubber test plug and it’s used to test sewer and drain pipelines of different sizes starting from Dia. 35mm up to Dia. 2200mm.

  • How do we use Pipe Test Plug?+

    We use the Pipe Test Plug to be able to fill the water or air in the test area without using the manhole. The Test Media is filled through the bypass connection after blocking the pipeline from the other side using Pipe Plug Model. You can check more details concerning the application by watching our video

  • Can we use one PTP Model for many pipe sizes?+

    PTP Model is multi-size pipe plug which means that you can use one PTP Model for many pipe sizes. For example, you can use PTP6001600 for all pipe diameters between 600mm and 1600mm. You can check in the above table the Usage Size Range of each pipe test plug model. You can watch our video for more details.

  • Is PlugCo offering any training of how to use Pipe Test Plugs?+

    PlugCo is providing trainings to its clients of how to succeed their test and how to use the Pipe Test Plugs correctly, and in the end of training, PlugCo is giving certificates to the concerned ones. In addition, PlugCo is assisting its clients by providing on-site supervision. You can check an example of a training we gave before.

  • What are the storage conditions of the Pipe Test Plugs?+

    The pipe Plugs should be stored in a dark & dry place, away from direct sunlight, and the temperature must be between +5°C and +25°C. In addition, before and after each use of the Plug, be sure to clean the external surface of the plug. However, NEVER Clean the plug with solvents, hydrocarbons or other aggressive agents.

  • Is PlugCo producing only the PTP Models?+

    PlugCo has a large products range including pipe plugs, joint testers and flexible packers and has succeeded to prove the high quality of its products by reaching clients in more than 50 countries all over the World.

×
