Model designation is PRV for pressure relief valve. The main purpose of pressure relief valve is keep the pressure on the desired or set pressure and discharge the air in case at reach over of set pressure. When the pressure exceeds the set pressure, safety relief valve starts the discharging of air. They act automatically as soon as the set pressure is reached with %10 tolerance.
The Pressure Relief Valve can operate set pressure for 1,0 bar, 1,5 bar, 2,5 bar, 3 bar, and 6 bar. And also our adjustable pressure relief valve can operate 1,4 bar up to 2,6 bar. They can operate at between -20 C to +200 C. For more technical information, please review the data sheet.
| MODELS | PRV1/PRV1,5/PRV2,5/PRV3/PRV6/PRVA |
|---|---|
| Material | Brass |
| Set Pressure | 1,0/2,5/3,0/6,0/1,4-2,6 (bar) |
| Connection | ¼” |
| Operation Temp. | -20°C/+200°C |
| Weight | 0.12 kg |

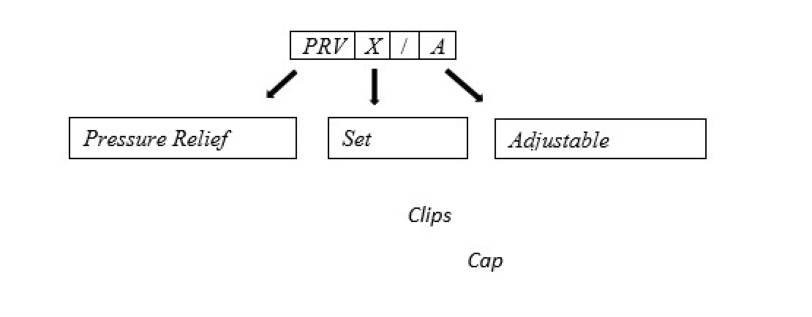

Select the Required Model
- Set pressure: 1,0 bar: PRV1
- Set pressure: 1,5 bar: PRV1,5
- Set pressure: 2,5 bar: PRV2,5
- Set pressure: 3,0 bar: PRV3,0
- Set pressure: 6,0 bar PRV6
- Set pressure: 1,4-2,6 bar PRVA
